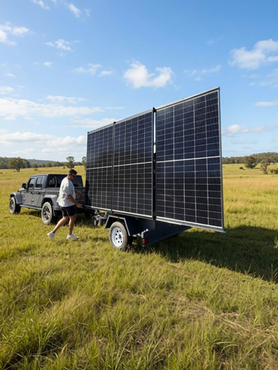

Solar Trailer Range
The MOST Capable Transportable Power System on the Market
Fully road transportable and registrable, deploy to site and simply plug in to an existing building or application.
With built-in auto-starting generator the system will ensure you always have power, whenever needed.
Suited for a variety of applications from farming, off-grid living, emergency services and off-grid construction sites.
Solar Trailer®
R-8
8kW with 20kWh Battery
4.08kW Solar -
Approx. 20.9kW Daily Yield
8 Panels - Jinko 510w Modules
20kWh Battery Capacity -
Expandable up to 30kWh Total
5kVa Victron Inverter Multiplus II with
2x 150/45 MPPT Charge Controllers
Built-In 6kVa Petrol Generator
with Auto Start
4G Cellular Monitoring (12 Months)
GPS Locator & Guest Monitoring
Primary & Auxiliary AC Output
15amp / 10amp Accessory
Pre-Wired & Configured System Board Installed
Free Consultations and Support
Solar Trailer®
R-5
5kW with 10kWh Battery
4.08kW Solar -
Approx. 20.9kW Daily Yield
8 Panels - Jinko 510w Modules
10kWh Battery Capacity - Expandable
5kVa Victron Inverter Multiplus II with
2x 150/45 MPPT Charge Controllers
Built-In 6kVa Petrol Generator
with Auto Start
4G Cellular Monitoring (12 Months)
GPS Locator & Guest Monitoring
Primary & Auxiliary AC Output
15amp / 10amp Accessory
Pre-Wired & Configured System Board Installed
Free Consultations and Support
Dimensions
R-5
Folded In:
L 4850mm x W 3800mm x H 2600mm
Deployed:
L 3750mm x W 2050mm x H 3000mm
R-8
Folded In:
L 3695mm x W 2086mm x H 2890mm
Deployed:
L 4840mm x W 3823mm x H 2555mm
